Tail / Warning Light, LED, Red A-72160473LED

This lamp requires the black ground wire eyelet to be grounded properly for light to function. It may be connected to the existing light mounting screws with an internal tooth lock washer & nut or to the fender panel with a self-tapping screw. (hardware not included with light)

Dim A (1)

Red Polycarbonate Lens

Dim B (2)

3 - 3 Watt LED Lights

Dim C (3)

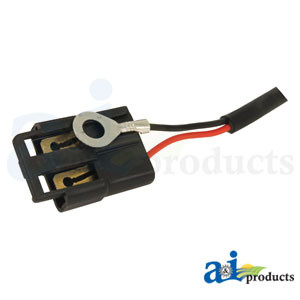

Black wire ground, red wire high beam, white wire low beam

Dim D (4)

Can wire for Hi / Low (Brake Light) function

Mount

4 mounting holes 4" apart side to side & 3" apart top to bottom

Replaces

30-3153347, 72160473, Grote 455

Volt/Amperage

For 10 - 30 Volt systems

Mega-Cross

Stocked As:

• A-WL7882

Sections and Models

Lights & Related Parts > Warning Lights

• Allis-Chalmers TRACTOR: 9130
• Allis-Chalmers TRACTOR: 9150
• Allis-Chalmers TRACTOR: 9170
• Allis-Chalmers TRACTOR: 9190
• White/ Oliver/ Mpl Moline TRACTOR: 100
• White/ Oliver/ Mpl Moline TRACTOR: 120
• White/ Oliver/ Mpl Moline TRACTOR: 140
• White/ Oliver/ Mpl Moline TRACTOR: 160
• White/ Oliver/ Mpl Moline TRACTOR: 185
• White/ Oliver/ Mpl Moline TRACTOR: 2-105
• White/ Oliver/ Mpl Moline TRACTOR: 2-110
• White/ Oliver/ Mpl Moline TRACTOR: 2-115
• White/ Oliver/ Mpl Moline TRACTOR: 2-135
• White/ Oliver/ Mpl Moline TRACTOR: 2-150
• White/ Oliver/ Mpl Moline TRACTOR: 2-155
• White/ Oliver/ Mpl Moline TRACTOR: 2-180
• White/ Oliver/ Mpl Moline TRACTOR: 2-180 SERIES II
• White/ Oliver/ Mpl Moline TRACTOR: 2-70
• White/ Oliver/ Mpl Moline TRACTOR: 2-75
• White/ Oliver/ Mpl Moline TRACTOR: 2-78
• White/ Oliver/ Mpl Moline TRACTOR: 2-85
• White/ Oliver/ Mpl Moline TRACTOR: 2-88
