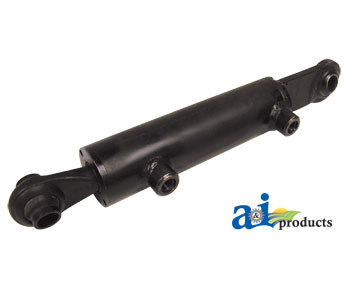

Hydraulic Top Link Cylinder (Cat I) (2" Bore) A-TLH001

$273.68
SKU:
A-TLH001

Weight:
12.30 LBS

All ports .563"-18 ORB w/ two adapters .563"-18 ORBM X .250" NPTM 90� swivel.

Dim I (9)
1450.377 PSI
Barrel Length
12.438"
Base End Ball Inside Dia
.750"
Base End Ball Width
1.375"
Base To Ball Center Lngth
3.500"
Compressed Length
20"
Replaces
Gannon 13-650
Rod End Ball Inside Diame
.750"
Rod End Ball Width
1.750"
Stroke
8"
Working Pressure
1450 lbs
Mega-Cross
Replaces:
  • TLH01 ~ MISCELLANEOUS
Crossed From:
  • HTL2102 ~ A & I MEGA-CROSS
  • 13-650 ~ MISCELLANEOUS
Associated Items
  • Item Number: A-TLH102RK
  • Description: Seal Kit
Sections and Models
Hitch & Drawbar Parts > Hitches: 2PT and 3PT
  • (Miscellaneous) (UNDEFINED): SEVERAL
  • Ford / New Holland TRACTOR: SEVERAL (Check Dimensions For Your Application)
  • John Deere TRACTOR: SEVERAL (Check Dimensions For Your Application)
  • Kubota TRACTOR: SEVERAL (Check Dimensions For Your Application)
  • Massey Ferguson TRACTOR: SEVERAL (Check Dimensions For Your Application)
Hitch & Drawbar Parts > Side/ Top Link Cylinders
  • (Miscellaneous) (UNDEFINED): SEVERAL
  • Ford / New Holland TRACTOR: SEVERAL (Check Dimensions For Your Application)
  • John Deere TRACTOR: SEVERAL (Check Dimensions For Your Application)
  • Kubota TRACTOR: SEVERAL (Check Dimensions For Your Application)
  • Massey Ferguson TRACTOR: SEVERAL (Check Dimensions For Your Application)
