(HW-MIX90) Male Inverted Flare - SAE 45° - Swivel - 90° Elbow A-MIX90-08-08-W

$21.26
SKU:
A-MIX90-08-08-W

Weight:
0.32 LBS

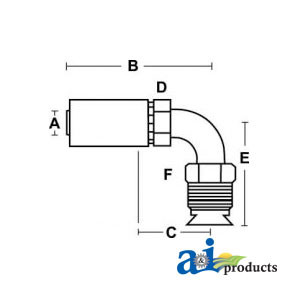

  • Dim A (1) : 0.500", 0.500"
  • Dim B (2) : 3.486"
  • Dim C (3) : 2.146"
  • Dim D (4) : 7/8"
  • Dim E (5) : 1.880"
  • Dim F (6) : 3/4"
  • Replaces : 16943-8-8
  • Thread Size : 3/4 x 18

  • Sections and Models:
  • Hydraulic Parts > Crimp-On Fittings
  • HW Series SAE 45 Inverted: Male, Swivel, 90 Elbow

    • mega-cross:
  • Replaces: : 16943-8-8 : MISCELLANEOUS
  • 1694388 : RIVERSIDE TRACTOR
  • Crossed From: : WH08U-B68 : A & I MEGA-CROSS

  • Machine Types : SAE 45 Inverted
  • Makes : HW Series
  • Models : Male, Swivel, 90 Elbow
  • Models :
