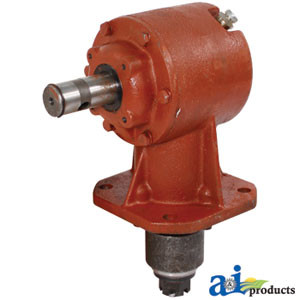

Gearbox, LF-205-J A-U920580000

$412.08
SKU:
A-U920580000

Weight:
43.50 LBS
Gearbox, LF-205-J A-U920580000
  • New Bondioli & Pavesi Gearbox. The gearbox ratio is 1:1.47. The input shaft is 1-3/8" round bore. The 12 spline output shaft has tapered splines, 40 mm spline and nut is 8.2.2.00515. The mounting pattern is 171.5 mm. The gearbox is rated at 40 hp at 540 rpm and has a CCW (Counter clockwise) rotation. Replaces Comer No. U920580000. Fits various Rotary Cutters.
  • Output shaft has12 tapered splines. Mounting bolt circle is 171.5mm. (6.75")
  • Hub is included as shown in the photos.



  • Horse Power : 40
  • Input : 540 RPM
  • Input Shaft (A) : 1 3/8" round bore
  • Output Shaft (B) : 12 spline
  • Ratio : 1 : 1.47
  • Replaces : Comer Part No: U920580000
  • Rotation : CCW



  • Sections and Models:
  • Driveline > Gear Box
  • Comer ROTARY CUTTER: LF-205-J



    • mega-cross:
  • Replaces: : BPS3035147006 : EDCOR
  • U9.135.800.10 : COMER
  • U9.205.800.00 : COMER
  • U913580010 : COMER
  • A-101ST : COMER
  • A-45PRC30147-N : HICO
  • A-81444 : BUSH HOG
  • A-826-384C : LAND PRIDE
  • 9.119.000.20 : COMER
  • 9.135.000.20 : COMER
  • 911900020 : COMER
  • 913500020 : COMER



  • Machine Types : Rotary Cutter
  • Makes : Comer
  • Models : Lf-205-J
  • Models :
