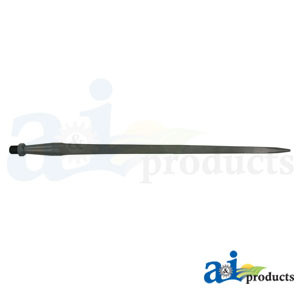

Bale Point 1 3/4 x 39 w/nut A-BP13439

A&I Products

$72.22

SKU:: A-BP13439
UPC:: 67195868525
Weight:: 14.74 LBS

Description

Standard duty bale points may be painted either red or gray.

New bale point. Bale point has a 2,200 lb. load capacity. Bale point torqued to 465-500 ft. lbs. Bale point is 39" long with 1.750" diameter and 30 mm nut. Uses bale point sleeve A-BPS34.
Dim A (1) : 1.750" Dia.
Dim B (2) : 39" Long
Dim C (3) : 30 MM Nut
Dim D (4) : Load Capacity: 2200 lbs. on 31.5" (800mm) Load Center
Dim E (5) : Tightening Torque For Nut: 465-500 Ft. Lbs.
Dim F (6) : Uses Sleeve BPS134
Dim G (7) : Replacement Nut BPN3002 Available

Sections and Models:
Hay Tool Parts > Bale Points
(Miscellaneous) (Undefined): SEVERAL

Machine Types : (Undefined)
Makes : (Miscellaneous)
Models : Several
